Ball Joint vs Kingpin Knuckles: Strength vs Serviceability
Which Front-End System Holds the Crown?
In the realm of front axle steering systems, the long-standing debate of ball joint vs kingpin knuckles isn’t just about preference—it’s a matter of function, strength, and serviceability. Whether you're rebuilding a trail-beaten Dana 60 or speccing out a custom 4x4 axle from scratch, choosing between these two knuckle types will shape how your vehicle handles abuse, wear, and maintenance for years to come.
Both systems have unique strengths. One is a rugged holdover from an earlier era of overbuilt machinery. The other is a sleeker, more modern solution tailored for convenience and daily usability. Yet, as anyone who’s been elbows-deep in a rebuild knows, convenience can be a double-edged wrench.
So, let’s cut past the guesswork. What’s really stronger? What fails less? And what will serve your build best in the long run?
Table of Contents
- Ball Joint vs Kingpin Knuckles: Overview and Definitions
- The Mechanical Breakdown: How Each System Works
- Strength Comparison: Who Takes the Abuse Best?
- Serviceability and Maintenance Differences
- Long-Term Wear, Replacement, and Field Repair
- Ride Quality and Steering Precision: Road vs Trail
- Kingpin Conversion Kits: Worth It or Waste?
- Ball Joint Upgrades: Is It Enough?
- Common Mistakes and Misconceptions
- Decision Scenarios and Recommendations
- FAQs
- Final Thoughts: Ball Joint vs Kingpin Knuckles Recap
Ball Joint vs Kingpin Knuckles: Overview and Definitions
Let’s set the stage with clear definitions. A ball joint knuckle system uses upper and lower spherical joints to allow steering and suspension movement. Think of it like the ball-and-socket joint in your shoulder—it rotates smoothly but has limits under torque.
On the other hand, a kingpin knuckle uses a vertical kingpin shaft that pivots inside a sleeve, held in place with bushings or bearings. It’s an older but brutishly strong design that once dominated heavy-duty truck and off-road applications.
Both attach the knuckle to the axle’s outer C, but how they distribute load—and how they handle failure—is a whole different story.
The Mechanical Breakdown: How Each System Works
Ball Joint Knuckle Steering Explained
In a ball joint system, the upper and lower ball joints act as pivot points, enabling the knuckle to turn with the steering input while allowing vertical motion from suspension travel.
The typical layout includes:
- Press-fit upper and lower ball joints
- Tapered studs mating into the knuckle
- Preloaded sockets with greased metal surfaces
This setup is compact, modular, and relatively easy to align. But—and here comes the caveat—it’s also more vulnerable to wear due to small bearing surfaces under high stress loads.
Kingpin Knuckle Steering Architecture
Kingpin knuckles function like a heavy hinge. A solid kingpin shaft runs vertically through the knuckle’s yoke ears, retained by caps at top and bottom. Bronze bushings or tapered roller bearings manage the rotation.
The structure includes:
- A solid chromoly or forged kingpin shaft
- Massive bearing or bushing load surfaces
- Greaseable, rebuildable assemblies
This design resists deflection, thrives under extreme torsional loads, and keeps alignment geometry under brutal abuse. That’s why old military axles and extreme rock-crawlers love them.
Strength Comparison: Who Takes the Abuse Best?
Let’s get brutally honest. When it comes to raw durability, kingpin knuckles win—not by inches, but by a mile.
Their larger contact surfaces distribute load better. The kingpin shaft doesn’t flex under high steering input. And unlike ball joints, they rarely “pop out” or wear asymmetrically after a hard trail day.
Where ball joints often use small bearings or sintered housings, kingpins depend on sheer mechanical mass. It’s the difference between a soda straw and a crowbar.
That said, there’s nuance here. High-quality aftermarket ball joints—especially with billet housings, chromoly studs, and preload adjustments—can get impressively close in strength. But they still rely on friction surfaces that eventually degrade.
So, is kingpin overkill for everyone? Not always. But if you’re regularly airing out 40-inch tires over granite shelves, you already know the answer.
Serviceability and Maintenance Differences
Ball Joint Service Considerations
Ball joints are relatively easy to replace—at least in theory. Most are press-fit into the axle C and require a C-clamp press or shop press for removal. But once seized by corrosion or deformation, they can become a curse.
You’ll often see:
- Deformed axle C bores from heat and removal attempts
- Off-axis presses that crack knuckles
- Limited ability to field-repair without specialized tools
Service intervals for OE ball joints range from 50,000 to 100,000 miles, depending on use. But for lifted rigs with oversized tires and heavy offset wheels? That lifespan shrinks fast.
Kingpin Maintenance and Rebuilds
Kingpin systems may seem old-school, but they were built with rebuildability in mind. That’s a rare gift.
You can:
- Re-shim preload without removing the knuckle
- Replace bushings or bearings individually
- Grease and inspect components without full disassembly
You’ll hear wheelers say, “It’s clunky but easy to bring back.” And they’re right. A full rebuild with new shims and bushings takes a couple of hours, often with basic hand tools.
And unlike ball joints, you’re not gambling with proper bore alignment or press-fit risk.
Long-Term Wear, Replacement, and Field Repair
Ball joints tend to wear internally in non-obvious ways. You might not notice the steering wander at first. Then one day you jack up a tire and feel that telltale clunk.
By contrast, kingpin wear is often audible and progressive. You’ll feel it as a bit of free play, easily verified with a pry bar. And you can adjust or rebuild without pulling the knuckle off the axle.
In the field? Kingpins win again. Ball joints usually need a shop to swap—kingpins just need patience, shims, and grease.

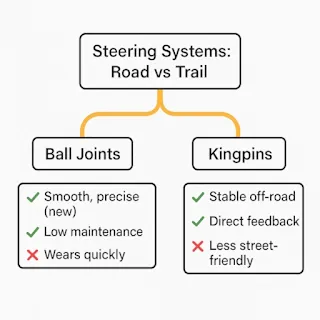

Ride Quality and Steering Precision: Road vs Trail
Ball joint systems often provide tighter steering feel when new, thanks to their compact, low-friction pivots. That makes them great for on-road driving, especially at speed. They offer:
- Smooth turn-in and return-to-center
- Less need for routine adjustments
- Predictable tire wear patterns (initially)
But as they wear, precision fades fast.
Kingpins, while not as refined on the street, deliver more feedback and control under load—especially when crawling. Their resistance to deflection means your steering input translates more directly into tire angle.
That subtle steering dead spot? With kingpins, it tends to stay subtle.
Kingpin Conversion Kits: Worth It or Waste?
For many off-roaders, converting from ball joints to kingpins is like trading in a scalpel for a sledgehammer. Not subtle—but brutally effective.
Kingpin conversion kits are:
- Expensive upfront
- Mechanically involved
- Often heavier by several pounds
But they provide measurable strength gains, particularly for:
- Rock bouncers
- Expedition rigs with heavy armor
- Desert racers with steering limit stress
If you’re breaking ball joints annually, a kingpin upgrade isn’t luxury—it’s survival.
Ball Joint Upgrades: Is It Enough?
Modern aftermarket ball joints have come a long way. Billet housings, grease ports, and adjustable preload kits can extend life and stiffness dramatically.
Still, even top-tier joints have a wear curve. They’re built for modularity, not immortality.
If you’re staying below 37s, not jumping dunes, and mostly daily-driving with occasional trails, a hardened ball joint upgrade might be all you need. But know your limit. That sleek, pressed-in marvel? It has a clock ticking from day one.
Common Mistakes and Misconceptions
- “Ball joints are fine for anything.” Not always. Heavy tires and lockers accelerate wear exponentially.
- “Kingpins are outdated.” Maybe on paper. But their simplicity is an advantage in remote repairs.
- “Rebuilding ball joints is cheaper.” Only if you ignore tool costs, press risks, and alignment resets.
- “Kingpin steering is sloppy.” Only if worn or improperly shimmed.
- “All ball joints are the same.” Far from it—cheap joints deform easily under heat and torque.
Decision Scenarios and Recommendations
If you’re planning:
- A high-speed overland build? Go ball joint with upgraded chromoly parts.
- A rock crawler with hydro-assist? Choose kingpin and never look back.
- A daily driver on 33s with weekend trail use? Stick with quality ball joints and keep them greased.
- A recovery or expedition rig deep in the outback? Reliability trumps ease—kingpin wins again.
There’s no one-size-fits-all. Just the right tool for your terrain, torque, and temperament.
FAQs
Q: Are kingpin knuckles still manufactured today?
Yes, many aftermarket axle builders still produce kingpin knuckle assemblies due to their superior strength for off-road applications.
Q: How long do ball joints typically last in a 4WD setup?
With oversized tires and trail use, expect 30,000–50,000 miles at best without upgrades.
Q: Can I switch from ball joints to kingpins?
Yes, but it requires an axle housing or outer C that supports kingpin knuckles—or a full swap.
Q: Do kingpins affect steering alignment?
No more than ball joints; both can be aligned accurately when properly installed and shimmed.
Q: Is one system better for highway driving?
Ball joints typically feel smoother and tighter at high speeds when new.
Final Thoughts: Ball Joint vs Kingpin Knuckles Recap
In the battle of ball joint vs kingpin knuckles, there’s no absolute winner—only what fits your mission.
Ball joints bring ease, smoothness, and familiarity. But kingpins offer raw, uncompromising strength and unmatched serviceability.
So, think long-term. Think terrain. Think about how often you want to be under the rig vs behind the wheel.
The right choice isn’t just about specs—it’s about confidence. And when that front end is clawing its way up a ledge or flying down a fire road, confidence is everything.
