Alternative Mounting Positions: Balancing Airflow and Component Protection
When choosing alternative mounting positions for airflow and protection, you're really navigating a high-stakes dance between breathability and battlefield armor. On one hand, your rig needs to breathe—radiators, intercoolers, oil coolers, and even transmission pans demand airflow. On the other, every square inch of exposed surface is a potential casualty when trail debris, mud, or rocks come hurtling at speed. How do we strike the right balance?
In this article, I’ll break down the key engineering principles behind repositioning key vehicle components, especially in 4WD off-road environments. From airflow patterns to shielding strategies, from thermal loads to shock resistance—we’ll pull apart each layer and make sense of how repositioning something as seemingly simple as a cooler or filter can completely redefine how your system performs... or fails.
Table of Contents
- Rethinking Airflow and Protection in 4WD Mounting Design
- Why Alternative Mounting Positions Matter More Off-Road
- Core Systems Affected by Mounting Locations
- Airflow Efficiency vs Component Exposure
- Ideal Positions for Heat Exchangers: Front, Roof, or Rear?
- Skid Plate Dilemmas and Underbody Mounting
- Hidden Pitfalls of Firewall and Inner Fender Locations
- Mounting Electrical Systems: High and Dry vs Close and Cool
- Shock and Vibration: The Invisible Enemies of Fragile Systems
- Mounting Position Mistakes to Avoid
- Summary: Making Smart Mounting Choices
- FAQs
Rethinking Airflow and Protection in 4WD Mounting Design
When engineers talk about mounting positions for airflow and protection, they’re often referring to thermal exchange and mechanical survivability. But for a 4WD setup, that’s just the beginning. We need to factor in dynamic airflow paths, debris trajectories, vibration nodes, and real-world serviceability.
Every component lives in a battlefield of sorts. Whether it's the radiator catching muddy spray, or the diff breather gasping for clean air, placement is tactical.
Why Alternative Mounting Positions Matter More Off-Road
Out on rough terrain, stock component locations often reveal their weaknesses. Components hang low. Air intakes gulp dust. Fan shrouds get punctured by branches. So, off-roaders and builders often ask: “What if we moved this?”
Moving parts like oil coolers, fuel filters, and compressors can dramatically reduce the chance of physical damage. But it comes at a cost—typically reduced airflow or increased thermal soak. So, you must weigh each move like a chess play: one step forward might expose something else.
And that’s where design gets creative. Or complicated.
Core Systems Affected by Mounting Locations
The list of systems impacted by mounting decisions is long. Here’s where alternative locations make or break performance:
- Radiators and intercoolers (for airflow and cooling capacity)
- Oil and transmission coolers (to avoid heat soak and damage)
- Fuel systems (filters, pumps, return lines prone to heat and rock hits)
- Electrical systems (ECUs, relays, fuses vulnerable to splash and vibration)
- Air filters and snorkels (dust ingestion vs water protection)
- Battery trays and inverters (exposed wiring vs cabin heat)
- Onboard air compressors (cooling vs dust protection)
Every one of these elements interacts with either airflow, thermal dynamics, or mechanical protection.

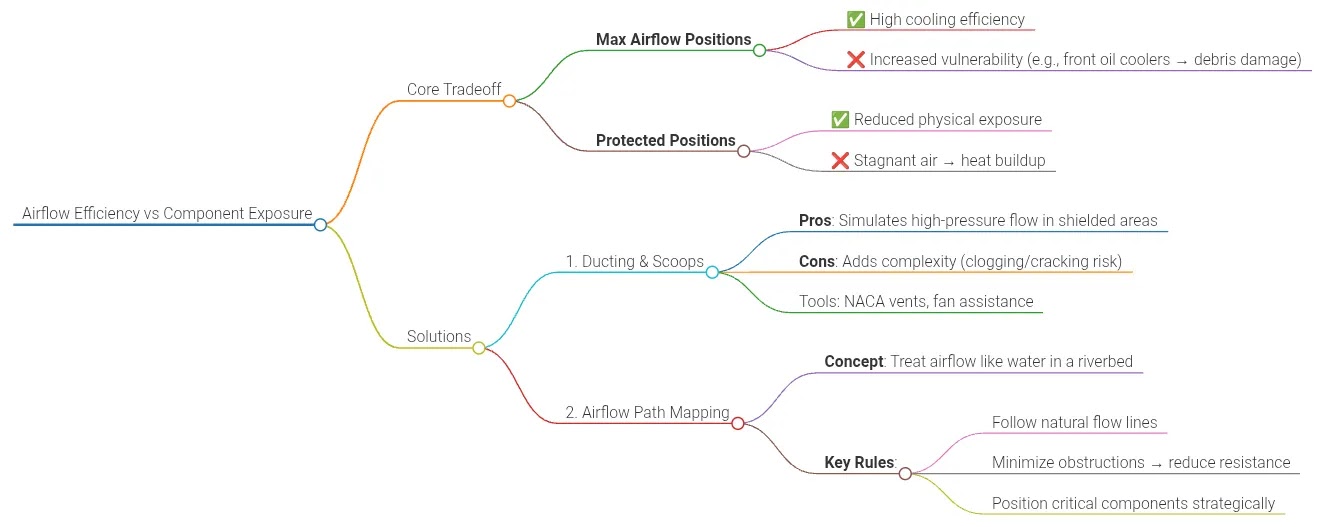

Airflow Efficiency vs Component Exposure: A Delicate Tradeoff
Mounting positions that maximize airflow often increase vulnerability. Components exposed to the airstream—like front-mounted oil coolers—are perfect targets for rocks and debris.
On the flip side, tucking parts behind protection often means they bake in stagnant air pockets. Without thermal relief, a cooler becomes a heat trap. Literally.
So how do you navigate this?
Using Ducting and Scoops
Smart routing with ducting, NACA vents, and fan assistance can simulate high-pressure flow even in tucked-in locations. But this adds complexity—more things to clog, crack, or wear.
Airflow Path Mapping
Think of airflow as water in a riverbed. It’ll flow around obstructions, split, compress, and slow. Any component in that path better be worth the resistance. Use this mindset when picking positions—follow the flow lines.
Ideal Positions for Heat Exchangers: Front, Roof, or Rear?
There’s no perfect spot—just calculated compromises.
Front-Mount: High Airflow, High Risk
This classic position ensures max exposure to wind. But it's the first to get smashed. If your trails include brush, rocks, or water crossings—consider armor or screening. Slanted radiators with hood vents improve natural convection and can be shielded underneath.
Roof-Mount: Clean Air, Turbulent Flow
Mounting radiators or coolers on the roof may sound clever, but air up there is turbulent. You’ll often need electric fans to draw air through. Plus, roof weight raises your center of gravity—never ideal off-road.
Rear-Mount: Low Impact, High Heat
Rear-mounted coolers are great for protection. But airflow is minimal unless you duct it aggressively or add fans. They’re common in high-speed desert rigs, but less practical for slow crawlers.
Skid Plate Dilemmas and Underbody Mounting for Protection
Mounting fuel filters or air tanks under the chassis seems logical—they’re low, out of sight, and easy to plumb. But airflow down there is chaotic and limited. Worse, heat from the driveline and exhaust can create micro-climates that cook your components slowly.
Use these rules of thumb:
- Always insulate components near exhaust paths
- Prefer vertical mounting over horizontal to reduce sludge collection
- Add venting wherever sealed plates are used
And always leave service access—you’ll thank yourself later.
Hidden Pitfalls of Firewall and Inner Fender Locations
Some builders love stuffing electrical parts behind the firewall or under the fender liner. It’s dry and secure—sure. But it's not all roses.
Firewall: Radiant Heat Nightmare
The firewall gets bathed in heat from the engine bay. That radiant heat can damage relays, wire looms, or even compressors.
Inner Fender: Dust Traps
Wheel wells are filthy. They collect silt, mud, and water. You might protect a component from impact—but drown it in grime. If you mount here, use sealed housings and serviceable splash guards.
Mounting Electrical Systems: High and Dry vs Close and Cool
Your ECU, relays, and wiring harnesses are the nervous system of your 4WD. They hate water. They hate vibration. And they absolutely despise heat.
Engine Bay Mounting
Convenient and close to sensors. But the thermal cycles are brutal. Over time, wires go brittle. Connectors corrode. Mount here only with MIL-spec heat shielding and rubber-damped brackets.
Cabin Mounting
Inside the cabin is protected—but heat builds fast without active cooling. It’s like storing electronics in an oven unless you vent or fan them. Still, for sensitive modules, this might be your safest option.
| Location | Pros | Cons | Needs |
|---|---|---|---|
| Engine | Close to sensors | Heat, vibration, water | Heat shielding |
| Cabin | Safe from elements | Gets hot | Active cooling |
Shock and Vibration: The Invisible Enemies of Fragile Systems
We often think in terms of airflow or rock strikes. But chassis harmonics and vibration resonance are slow killers.
Poorly mounted fuel pumps can cavitate. Loose oil cooler lines fatigue and rupture. Relay boards buzz until solder joints crack.
Best Practices
- Use rubber-isolated mounts for sensitive systems
- Secure all wiring in serpentine patterns to absorb shock
- Avoid rigid mounts unless absolutely required for grounding or heat sinking
It’s the little things that fail first.
Mounting Position Mistakes to Avoid
A few all-too-common slip-ups:
- Blocking heat exchangers with lights or winches
- Routing intake ducts near exhaust manifolds
- Mounting filters where draining them is nearly impossible
- Ignoring splash paths from tires or fan sprays
- Using unshielded aluminum brackets on steel frames (hello galvanic corrosion)
Each of these creates a weak point that might not fail now—but will when you need it least.
Summary: Making Smart Mounting Choices for Airflow and Protection
Choosing alternative mounting positions for airflow and protection isn't a luxury—it's a necessity in demanding builds. You need to see every surface, bracket, and duct not just as hardware—but as part of a thermal and kinetic system.
The best setups blend smart airflow design with durable shielding, while keeping long-term serviceability in mind. There’s rarely a one-size-fits-all. But if you follow the airflow, feel the heat, and plan for the hit—you’re already ahead.
FAQs
What’s the best mounting position for an oil cooler in off-road use?
Typically, slightly tilted behind the grill, with airflow screens and backup fans. Avoid roof mounting unless fan-assisted.
Can I mount electronics under the hood if I waterproof them?
Yes, but you must also heat-shield and vibration-dampen them. Waterproof doesn’t mean thermally immune.
Is rear-mounting radiators viable for low-speed off-roading?
Only with high-CFM fans and proper ducting. Otherwise, airflow at crawling speeds is inadequate.
How do I know if my mounting position is overheating?
Use thermal stickers or infrared readings post-run. Any surface over 90°C for long durations risks damage.
Should I prioritize protection or airflow?
Depends on terrain. For rock crawling: protection. For desert speed: airflow. Hybrid trails require a creative blend of both.
Conclusion: Rethink Placement, Redefine Performance
Smart placement isn’t just about where something fits—it’s about how it breathes, survives, and serves under stress. Every decision about mounting location affects airflow efficiency, protection level, and overall reliability. So before you bolt that part down, ask yourself—is this the best spot for what it does and what it needs to endure? Because often, rethinking where a part lives means rewriting how well it works.
