Transfer Case Mode Selectors Explained

Unlocking the Connection Between Mode Selectors and Transfer Cases

When we talk about how mode selectors interface with transfer cases, we're diving into the core of what gives a 4WD vehicle its adaptability. This isn't just about flipping a switch and magically getting more traction—there’s a deeply mechanical and electronic dance happening underneath your feet. The relationship between the selector and the transfer case is more than a casual handshake. It’s an active conversation, constantly responding to torque demands, wheel slip, road surface, and driver intent.

What really goes on when you rotate that dial from 2H to 4L? Is it a direct command, a request, or a negotiation with embedded electronics and clutch packs? This article explores the precise mechanisms and interactions at play, tracing the wiring, logic, and force transmission from the cabin’s selector to the hard steel inside the transfer case control system.

Understanding Transfer Case Mode Selector Systems
The Transfer Case: Anatomy of the Command Receiver
Mechanical vs Electronic Selectors: Evolution and Function
Power Flow Management and Transfer Case Engagement
Transfer Case Control Modules (TCCMs) and Their Role
Signal Paths: From Selector Input to Shift Motor Execution
Common Failures in Mode Selector and Transfer Case Interfaces
How to Choose the Right Setup for Your Driving Needs
Troubleshooting Mode Selector Malfunctions
Practical Insights: Making Smart Repair and Upgrade Decisions
Frequently Asked Questions
Conclusion: Why Understanding Selector-to-Transfer Case Interfaces Matters

Understanding Transfer Case Mode Selector Systems

Let’s start with the core idea. The mode selector in a 4WD system is the user’s interface for commanding the drivetrain. Think of it as the cockpit lever that signals your intentions. Depending on design, this can be:

A mechanical lever directly engaging the transfer case
A rotary switch or push-button interfaced via electronics
A drive-by-wire system with multi-condition logic

Each of these interfaces connects the driver’s mode selection—whether 2WD, 4WD High, 4WD Low, or Auto—to a mechanical reaction in the transfer case that adjusts torque distribution between front and rear axles.

The Transfer Case: Anatomy of the Command Receiver

Inside the transfer case, gears, clutches, and chains wait for commands. But they don’t act on their own. They need actuation—either mechanical or electronic.

Here's what the transfer case interface system typically includes:

Planetary gearsets for low-range capability
Multi-disc clutch packs for slip-controlled engagement
Shift forks that engage specific gear combinations
Input shafts that split torque
An electric shift motor or actuator for system control

If we zoom in deeper, that actuator is often the unsung hero. It’s what physically moves the shift rail or clutch drum based on the mode selector's instruction. And that instruction is either mechanical (direct movement via linkage) or electrical (a signal carried by wire, processed through logic circuits).

Mechanical vs Electronic Selectors: Evolution and Function

Mechanical Linkage Systems

Earlier transfer case systems used rigid, mechanical linkages. When you pulled a lever, it physically moved a shift fork inside the case. No guesswork. No delay.

But these had limitations:

Difficult to actuate under load
Poor ergonomics
Susceptible to alignment issues

Electronic Mode Selectors

Modern vehicles often use electronic transfer case selectors, which come with many advantages:

Better integration with ECU and ABS systems
Automated transition logic (only allow shifts when safe)
Remote actuator positioning for space efficiency

However, they come with new problems—relay failures, sensor drift, poor grounding, or shift motor burnouts. You gain convenience, but you invite complexity.

So, which is better? It depends. Purists might argue for mechanical control due to reliability. But in daily driving, the automation of an electronic mode selector improves usability and safety.

Power Flow Management and Transfer Case Engagement

Here’s where the real action happens. The mode selector switch signals the transfer case to change how power flows through the drivetrain.

In 2H (two-wheel drive high):

Torque flows only to the rear axle
The front driveshaft is disconnected (mechanically or electronically)

In 4H (four-wheel drive high):

Torque is split between front and rear, often equally
In electronically controlled systems, this may involve a clutch engaging the front output shaft

In 4L (four-wheel drive low):

A gearset multiplies torque (typically around 2.7:1)
Vehicle speed drops, but torque increases massively
This is where shift precision becomes critical—especially off-road

Auto 4WD modes rely on sensors to detect slip and engage the front wheels when needed. The transfer case control module (TCCM) does this automatically, but only if it interprets the selector input correctly.

Transfer Case Control Modules (TCCMs) and Their Role

The TCCM is the brain in this equation. It receives the selector's input and interprets it in context—vehicle speed, throttle input, ABS sensor data—and determines when and how to shift the transfer case.

A typical sequence looks like this:

Driver turns the mode selector to 4H
TCCM verifies speed is within safe shift limits
It signals the shift motor to rotate the selector shaft
Position sensors confirm movement
Torque is transferred to the front axle

The interface between the selector and transfer case, then, is not a direct line. It’s a decision-making loop.

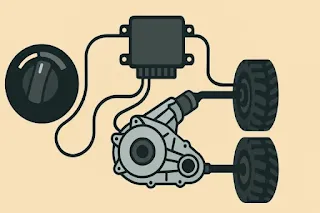

Signal Paths: From Selector Input to Shift Motor Execution

This is the electronic relay race. The selector (switch, button, or dial) sends a signal through:

Body Control Module (BCM) or Powertrain Control Module (PCM)
Then to the Transfer Case Control Module (TCCM)
Which then triggers the shift motor
Which physically moves internal components in the transfer case

Each of these stops introduces the potential for error. A bad solder in the BCM can make your selector feel dead. A failing encoder ring on the shift motor might misreport position. And suddenly, you're stuck in neutral.

Common Failures in Mode Selector and Transfer Case Interfaces

There’s no shortage of things that can go wrong. Among the most frequent:

Selector switch failure: Often due to dirt, water ingress, or worn contacts
TCCM software glitches: Incompatible firmware after ECU updates
Encoder ring misalignment: Incorrect reading of selector shaft position
Shift motor failure: Dead brush, stripped gear, or jammed actuator
Grounding issues: Especially common in older or modified vehicles

And of course, one of the biggest errors drivers make? Trying to shift into 4L while moving at speed. That can damage the internal synchronizers or cause the system to lock out completely.

How to Choose the Right Setup for Your Driving Needs

Your choice of mode selector and transfer case integration should depend on how you plan to drive:

Casual off-roaders: Will benefit from electronic selectors and automated engagement
Overlanders and remote explorers: Should lean toward systems with manual backup capability
Technical rock crawlers: Need absolute control, making mechanical selectors with twin-stick setups ideal

Don’t just choose based on “what looks modern.” Evaluate how the system communicates internally, how repairs can be made in the field, and what happens when the electronics quit.

Driving Style	Recommended Setup	Key Considerations
Casual Off-roaders	Electronic/Automated Selectors	Ease of use, modern features
Overlanders & Explorers	Systems with Manual Backup Capability	Field-repairable, reliable
Technical Rock Crawlers	Mechanical Twin-Stick Setups	Absolute control, durability

Troubleshooting Mode Selector Malfunctions

When something doesn’t engage, don’t just assume it’s the selector. Consider this triage order:

Check the fuse and wiring to the mode selector switch
Listen for actuator sounds—is the motor clicking or silent?
Use scan tools to check for TCCM fault codes
Verify position sensor feedback matches selector input
Inspect shift linkage or motor spline for mechanical wear

It’s often not the most obvious component. Sometimes, the system is “listening” to the selector—but something downstream is choosing to ignore it.

Practical Insights: Making Smart Repair and Upgrade Decisions

Want a system that always works? Then choose simplicity. Want one that’s seamless and intelligent? Then embrace complexity and plan for its upkeep.

When upgrading a transfer case or retrofitting a mode selector control system, always ensure:

Signal compatibility between selector and TCCM
Encoder ring position calibration
Shift motor gearing and torque match the case
BCM or ECU reprogramming (if required)

Cut corners here, and you might end up stuck in 4L on a freeway—or worse, locked out of 4WD during a steep climb.

Frequently Asked Questions

How do mode selectors communicate with the transfer case?
Via a combination of electrical signals and mechanical actuation, interpreted by the TCCM.

Can I shift from 2H to 4H while driving?
Yes, most modern systems allow on-the-fly shifting to 4H under safe conditions (typically under 60 km/h).

What causes delayed or failed engagement?
Usually electrical faults, bad encoder rings, actuator issues, or grounding problems.

Is an electronic mode selector less reliable than a mechanical one?
Not necessarily—it’s more complex, but also more intelligent. Reliability depends on maintenance and usage.

Can I retrofit a manual selector on an electronically shifted transfer case?
It's possible but complicated. Requires custom parts and full bypass of the vehicle's control systems.

Why Understanding Selector-to-Transfer Case Interfaces Matters

Understanding how mode selectors interface with transfer cases gives you the power to make better decisions—not just in buying, but in driving, maintaining, and upgrading. It’s the difference between feeling in control and being at the mercy of a blinking 4WD light.

By mastering this interface, you’re not just pushing buttons—you’re commanding a system built to tackle the unpredictable. And whether you're crawling through boulders or just navigating a muddy road, that knowledge makes all the difference.
