Propeller Shaft Basics: Understanding Function, Types, and Common Issues

Introduction: The Spinning Spine of Power Transmission

If you've ever heard a rhythmic hum beneath your 4WD on a long stretch of rugged terrain, chances are you were listening to the propeller shaft singing its mechanical tune. Also called the driveshaft, this vital component is the unsung conduit that takes power from your engine and gearbox and faithfully delivers it to the wheels. Yet, despite its central role, it often gets overlooked until things go sideways—literally or figuratively.

But what exactly does a propeller shaft do? Why do some vehicles have single-piece shafts while others rely on double or even triple configurations? And when vibrations start creeping in, how do you know whether it's the prop shaft crying for attention or something deeper in the drivetrain?

Let's crack this open. We're not just skimming the surface—we're diving into the technical layers with precision, but also clarity. If you're a gearhead, an off-road modder, or just someone trying to understand why their vehicle shudders under torque, this guide is built for you.

Propeller Shaft Basics: Understanding Function, Types, and Common Issues

What Is a Propeller Shaft and What Does It Do?
How Power Moves Through a Driveshaft
Types of Propeller Shafts and When to Use Them
Advanced Driveshaft Materials and Construction
Universal Joints, CV Joints, and Slip Joints Explained
Common Propeller Shaft Issues and Warning Signs
Diagnosing Vibration, Clunk, and Whine
Mistakes People Make with Driveshafts
Choosing the Right Propeller Shaft for Your Setup
Frequently Asked Questions
Conclusion: The Driveshaft’s Role in Performance Longevity

1. What Is a Propeller Shaft and What Does It Do?

At its core, the propeller shaft function in power transmission is deceptively simple: it transmits torque and rotational force from the transmission to the differential. But here's the twist—it does this across a flexible, often moving chassis where angles shift, loads vary, and alignment is rarely perfect.

Imagine trying to turn a heavy-duty steel bar while it’s constantly tilting, stretching, and compressing—while also spinning at several thousand RPM. That’s the life of a propeller shaft. It’s a dynamic, high-stress component living in the dark spaces under your vehicle.

This makes the driveshaft role in torque delivery central to mechanical efficiency and safety. A poorly functioning prop shaft can turn power loss into catastrophic drivetrain failure.

2. How Power Moves Through a Driveshaft

Let’s walk through it: when your engine spins the crankshaft, power gets sent into the transmission, which modulates gear ratios. From there, torque exits the gearbox and travels through the output shaft, entering the propeller shaft—now tasked with bridging that gap to the rear or front differential, depending on drivetrain layout.

But that torque doesn’t travel in a straight, clean line. Suspension movement, chassis flex, and terrain shifts mean the propeller shaft in a 4WD vehicle must flex while spinning—thanks to joints like U-joints and CV joints that allow for angular movement.

And this flexing isn’t benign. Any deviation from proper balance or joint articulation introduces rotational vibration, or worse, torque steer and backlash.

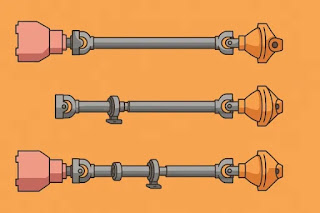

3. Types of Propeller Shafts and When to Use Them

Here’s where engineering gets opinionated. Some swear by single-piece shafts for simplicity and fewer points of failure. Others argue that multi-piece propeller shafts for long wheelbases are indispensable for reducing vibration and accommodating chassis dynamics.

Single-Piece Driveshafts
Best for short-wheelbase vehicles. Simple, light, but sensitive to alignment and balance.
Two-Piece Driveshafts
Ideal for trucks or extended 4WDs. Uses a center support bearing to reduce whip and allow for longer reach.
Three-Piece Systems
Rare, but seen in very long chassis setups. Adds complexity but increases alignment flexibility.

So which one’s better? It depends. Tight-clearance desert crawlers may benefit from single shafts, while a lifted overlander with articulation extremes often needs two-piece shafts with slip spline play.

TYPE	VEHICLE	PROPERTIES
Single	Short vehicles	Simple/light
Two	Long trucks	Less vibration
Three	Extra-long	Flexible but heavy

4. Advanced Driveshaft Materials and Construction

Now, let’s talk material science. The material choice for driveshaft construction plays a huge role in performance and reliability.

Steel Driveshafts
Strong, affordable, easy to repair. But heavier, and more prone to harmonic vibration.
Aluminum Driveshafts
Lighter, great for reducing rotating mass. May flex under high torque.
Carbon Fiber Driveshafts
Super light, high torque absorption, and excellent damping. But expensive and prone to damage from debris.

In performance tuning, it’s not just about weight. It’s about torsional stiffness, critical speed, and durability. You want a shaft that holds under torque without becoming a tuning fork for vibration.

5. Universal Joints, CV Joints, and Slip Joints Explained

Ever wondered how a shaft manages to spin while bending? Enter driveshaft joint types.

Universal Joints (U-Joints)
These little cruciform pieces allow angular movement but introduce what's called non-uniform rotational velocity—meaning the shaft can spin unevenly unless angles are matched.
Constant Velocity (CV) Joints
Common in front-wheel drives and independent setups. These joints keep rotational speed uniform despite angle changes.
Slip Joints
Allow axial movement, absorbing changes in length as the suspension flexes. Vital for off-roaders.

Missed greasing that U-joint? Expect clunking. Chose the wrong CV joint angle? Prepare for binding under load.

6. Common Propeller Shaft Issues and Warning Signs

Let’s cut to it. Here’s what the most common propeller shaft failures feel and sound like:

High-Speed Vibration
Often a sign of imbalance or a failing U-joint. You’ll feel it in your feet or seat, especially past 40 mph.
Clunk During Shifts or Takeoff
Points to loose slip yokes, worn joints, or backlash in the diff.
Squeaking at Low Speeds
Grease starvation. A dry U-joint is slowly eating itself alive.
Whining or Groaning
Could be the center support bearing failing. Listen near the middle of the car.

Ignore these at your peril. That clunk you hear today might be the shaft detaching tomorrow.

7. Diagnosing Vibration, Clunk, and Whine

Diagnosing propeller shaft noise and vibration isn’t guesswork. It’s forensic work.

First step? Visual inspection. Look for rust bleed at U-joint seals—sign of internal failure. Then grab the shaft and try rotating it with your hand (engine off, wheels chocked!). Excessive play? Something’s worn.

Next: check alignment. A slightly off-angle U-joint can induce "driveline phase error"—a harmonic misfire of sorts.

Balancing is another art. Even a missing balance weight (often tiny) can throw off the whole shaft’s rotation. And don’t rule out trans mount sag—it can change your driveline geometry subtly but destructively.

8. Mistakes People Make with Driveshafts

We’ve all seen it: someone swaps in a lift kit and forgets to address driveshaft length. Or installs a high-angle shaft without correcting pinion angle.

Here are the top mistakes with propeller shafts:

Ignoring operating angles
Anything beyond 3-5 degrees of misalignment can cause serious vibrations.
Skipping balance after modification
Even shortening a shaft by an inch demands dynamic rebalance.
Reusing old U-joints
They may look fine, but that micro-wear adds up fast under torque.
Wrong spline count or yoke mismatch
A recipe for binding or premature wear.

9. Choosing the Right Propeller Shaft for Your Setup

Here’s the million-dollar question: how to choose the right propeller shaft for your 4WD build or repair?

Start with these:

Torque Capacity: Match the shaft to your peak output torque. High-torque applications need thicker walls or exotic materials.
Length and Travel: Ensure enough slip travel for articulation. Too short? You risk pull-out. Too long? You bottom out the spline.
Joint Type and Operating Angle: Match the joints to your suspension geometry.
Vibration Tuning: Consider harmonic dampers or tuned yokes for smoother operation.

Don’t forget to factor future upgrades. Planning to add lockers or increase wheel size? Build headroom into your choice.

10. Frequently Asked Questions

Q: How often should I inspect my propeller shaft?
A: At least every oil change or after heavy off-road use. Look for wear, rust, and grease leakage.

Q: Can I drive with a bad U-joint?
A: Not safely. A failing U-joint can seize or break, taking out the transmission or differential in the process.

Q: Is it okay to replace just one U-joint?
A: Technically yes, but if one failed, others may be close behind. Replacing all at once ensures consistency.

Q: What’s the maximum safe angle for a U-joint?
A: Typically under 5°, though high-angle joints exist. More angle = more vibration unless properly phased.

Q: Are aluminum shafts better than steel?
A: Not always. They’re lighter but less forgiving in shock-heavy environments like off-roading.

Conclusion: The Driveshaft That Quietly Does It All

The propeller shaft in a vehicle drivetrain is more than just a spinning tube. It’s a flexible, high-stress, precisely balanced component that must absorb torque, navigate angles, and hold up under movement—all without complaint. Until it does complain, that is.

Choosing, maintaining, or upgrading a driveshaft isn’t just about bolting parts together. It’s about understanding the flow of power, the physics of rotation, and the nuances of suspension behavior.

So whether you’re crawling up granite, cruising on asphalt, or just trying to eliminate that mysterious highway shake, remember: the shaft beneath you is doing more than spinning. It’s holding everything together.

And now, you know what to listen for when it whispers.
