Mounting Tanks to Survive Chassis Flex Without Damage or Leaks

Introduction

Mounting tanks to survive chassis flex isn't just a technical nuance—it’s a core part of off-road vehicle engineering. Whether you're securing an auxiliary fuel tank, a heavy-duty water reservoir, or an air tank for onboard systems, poor mounting can lead to cracking, leaking, or full detachment once the chassis twists under load. In this piece, we’ll unpack why chassis flex poses such a high-stakes problem, how it interacts with tank materials and mounting strategies, and how to approach installations that hold strong across brutal terrain.

What happens when you bolt a rigid tank directly across a frame section that twists during articulation? Metal fatigue, sheared brackets, and busted seams—that’s what. But before you panic, let’s take a deep dive into how to design these systems with intelligence and resilience.

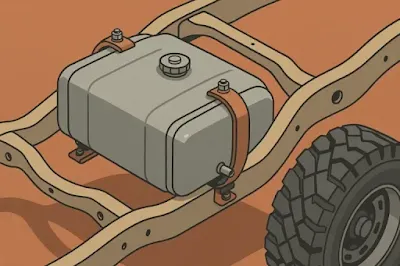

Mounting Tanks to Survive Chassis Flex Without Damage or Leaks

Understanding Chassis Flex in Off-Road Conditions
Why Standard Tank Mounting Fails Off-Road
Tank Materials and Their Response to Flex
The Role of Isolation Mounts and Flex Brackets
Designing Multi-Axis Mounting Points for Tanks
Tank Mounting on Ladder Frames vs Tubular Frames
Avoiding Frame Binding and Torsional Lock
Common Mistakes When Mounting Tanks on Flexible Chassis
Key Hardware and Fastener Choices That Matter
Choosing the Right Tank Type and Shape
Addressing Thermal Expansion and Pressure Cycles
Sealing, Vents, and Anti-Slosh Measures Under Flex
Field-Proven Mounting Approaches Worth Emulating
FAQs on Mounting Tanks to Survive Chassis Flex
Conclusion: Strong, Smart, and Flexible Mounting

Understanding Chassis Flex in Off-Road Conditions

Chassis flex refers to the natural twisting and bending that occurs in a vehicle's frame when it's navigating uneven or rugged terrain. Longitudinal twist, diagonal articulation, and side-load stress all contribute. Frames—especially ladder-style designs—are engineered to flex to avoid cracking under load.

Imagine holding a licorice stick and twisting each end in opposite directions. That's your 4WD frame on a rocky climb. Now bolt a stiff aluminum tank across that flex zone. What gives first—the tank, the brackets, or the frame rail? If it's not designed for movement, something snaps.

Types of Flex That Affect Tank Mounts

Torsional twist: When one corner of the chassis lifts, the frame experiences a diagonal warp.
Longitudinal bending: Occurs when the frame rides over a crest or ditch.
Lateral deflection: Side loads can shift tank brackets laterally, especially during sidehill driving.

Why Standard Tank Mounting Fails Off-Road

The problem with factory-style tank mounts? They’re often designed for paved roads, not flex-heavy rock tracks. A rigid mounting system acts like a bridge beam welded to a trampoline—it works until the trampoline moves.

Rigid Mounting Risks:

Stress fractures on welded tank seams
Bracket deformation from opposing load vectors
Tank cracking due to constrained expansion

Mounts that do not decouple tank movement from frame twist essentially turn tanks into structural members. That’s a mistake. Your tank should ride with the chassis, not fight it.

Tank Materials and Their Response to Flex

Materials respond differently to dynamic flex. Some absorb it, some transmit it, and some outright fail under cyclical loads.

Material Breakdown:

Polyethylene tanks: Flex-tolerant, lightweight, but need proper support to avoid bulging.
Aluminum tanks: Rigid, low weight, vulnerable to cracking without floating mounts.
Stainless steel tanks: Durable and weldable, but heavy and sensitive to stress risers.

So what’s the takeaway? Match the material to the environment. A poly tank with a floating strap system can outlast a rigid aluminum tank that’s hard-mounted with no give.

The Role of Isolation Mounts and Flex Brackets

Here’s where the real engineering nuance lives. Isolation mounts decouple vibrational and structural inputs from the tank. Think of them as the tank’s suspension system.

Key Types:

Rubber isolation bushings
Floating bracket arms with slotted holes
Double-shear tabs with poly washers

It’s not overkill—it’s essential. The best brackets have forgiveness built-in, allowing micro-movements under macro loads. Tanks should be mounted like sensitive cargo, not load-bearing beams.

Designing Multi-Axis Mounting Points for Tanks

Mounts must accommodate movement in all three planes: X, Y, and Z. That means no hard-welding all four corners of a tank to a twisting frame.

Better Design Principles:

Use pivoting mounts on one side to absorb yaw and roll.
Leave slip tolerance in lateral mounts to allow for chassis spread.
Integrate elongated slots to enable thermal growth and compression under twist.

Think of it like building a house on stilts in a flood zone—it must stand because it moves.

Tank Mounting on Ladder Frames vs Tubular Frames

Your chassis type dictates the mounting approach. Ladder frames flex in torsion more than boxed tubular frames, but tubular frames transmit harmonics more aggressively.

Ladder Frame Considerations:

Focus on isolation from vertical twist.
Use saddle mounts with end play.

Tubular Frame Considerations:

Address vibration damping.
Prioritize rigid mounting with shear pads at junction points.

Either way, the tank is a passenger—not a structural crossmember.

Avoiding Frame Binding and Torsional Lock

Here’s where many go wrong. Over-bracing a tank mount can lead to torsional lock, where the mount resists flex, causing fatigue cracks or frame distortion. Instead:

Mount across flexible points rather than along major frame rails.
Avoid welding brackets on both sides of a flexing frame.
Test-fit brackets with frame articulation simulated.

A little movement prevents a lot of damage.

Common Mistakes When Mounting Tanks on Flexible Chassis

Let’s call out the classics, shall we?

Hard-welding all mount tabs to multiple frame planes
Omitting vibration isolation on rigid tanks
Ignoring thermal expansion in fluid-carrying tanks
Running plumbing lines too tight, causing pull-out or fracture under flex
Not pressure-testing the tank post-installation

These are more than just oversights. They’re time bombs.

Key Hardware and Fastener Choices That Matter

Choosing the right fasteners and supports makes all the difference. Look for:

Grade 8 or stainless bolts with locking nuts
Wide-load washers to distribute stress
High-durometer rubber bushings
Shear brackets instead of cantilevered tabs

Fasteners should allow compliance without introducing rattle or slop. It’s a delicate balance—tight, but tolerant.

Choosing the Right Tank Type and Shape

Size and shape impact stress distribution. Avoid long, flat-bottom tanks on flexing chassis sections.

Preferred Shapes:

Cylindrical tanks: Better pressure management, less stress per unit area.
Rounded-corner cuboids: Prevent cracking at corners.
Segmented tanks: Allow expansion and distribute weight evenly.

When in doubt, go with shorter tanks mounted longitudinally.

Addressing Thermal Expansion and Pressure Cycles

This one's often missed. Fluid tanks expand under heat and pressure. Flexing chassis exacerbate that by moving fill lines and straining caps.

Tips:

Use expansion-capable vents.
Leave slack in hose routing.
Test with hot fluid cycling before calling it done.

This isn’t just about leaks—it’s about keeping pressure in check across thousands of bumpy miles.

Sealing, Vents, and Anti-Slosh Measures Under Flex

Flex affects more than just brackets. Vents can siphon, seals can unseat, and internal slosh can compromise baffle performance.

Must-Have Features:

One-way breather vents with rollover shutoff
Multi-baffle designs inside tanks
Foam inserts to dampen surge in high-articulation events

Don't underestimate the power of an air pocket under G-load.

Sealing, Vents, and Anti-Slosh Measures Under Flex

Field-Proven Mounting Approaches Worth Emulating

Across builds, one approach rises to the top: flexible triangulated mounting. Three points, one floating. It mimics a camera gimbal, allowing all-axis motion without rattle.

Bonus Tips:

Add a wear plate beneath tank mounts.
Use UV- and fuel-resistant bushings.
Check mounts every 3,000 miles under off-road use.

Because what works in theory sometimes falls apart in the dust.

FAQs on Mounting Tanks to Survive Chassis Flex

Q1: Can I weld a tank bracket to both frame rails?
No. Always allow for movement—weld to one side only and float the other.

Q2: What’s the best tank material for chassis flex tolerance?
Polyethylene, due to its natural compliance and resistance to cracking.

Q3: Should I pressure test tanks after mounting?
Absolutely. Always simulate pressure and flex before finalizing.

Q4: How do I prevent hose fittings from cracking under flex?
Use flexible hose loops and swivel joints where necessary.

Q5: Is it safe to mount a tank above the rear axle?
Yes, if mounted with flexible isolation and adequate clearance.

Conclusion: Strong, Smart, and Flexible Tank Mounting

Mounting tanks to survive chassis flex isn’t about overbuilding—it’s about building smart. From flex-tolerant brackets to isolation hardware and flexible materials, every choice affects your system’s durability. The main keyword here—mounting tanks to survive chassis flex—is more than just a phrase. It's a mission.

Respect the frame’s motion. Let the tank move with it, not against it. When done right, your tank will last the life of the build—and never leak a drop under strain.
