Axle Tube Wall Thickness: Why It Matters More Than You Think

Introduction: Why Axle Tube Wall Thickness Isn’t Just “Extra Metal”

Let’s cut through the fog—axle tube wall thickness isn’t just an engineering footnote. It directly shapes how your drivetrain handles stress, flex, torque, and trauma. Whether you're crawling over jagged granite ledges, hammering down a washboard trail at speed, or building a bulletproof axle for towing, this one specification can quietly define the difference between confidence and catastrophe.

So, does axle tube wall thickness really matter? Absolutely—but not in the same way for everyone. Like much in mechanical engineering, the answer hinges on what you demand from your rig. Let’s dig in.

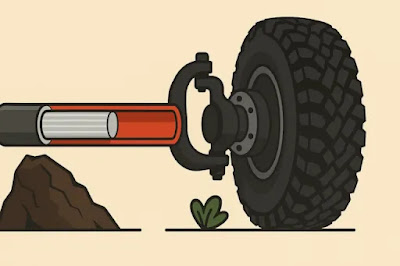

How axle tube wall thickness affects strength, flex, durability, and off-road control.

Table of Contents

  1. Understanding Axle Tube Wall Thickness in Simple Terms
  2. Why Axle Tube Wall Thickness Affects Strength and Longevity
  3. The Impact on Flex, Fatigue, and Real-World Rigidity
  4. Thin-Wall vs Thick-Wall: Applications and Trade-Offs
  5. How Axle Tube Wall Thickness Influences Welding and Sleeving
  6. Does Wall Thickness Affect Suspension and Steering Feel?
  7. Common Misconceptions and Mistakes When Choosing Axle Tubes
  8. Summary: Choosing the Right Wall Thickness for Your Build
  9. Frequently Asked Questions
  10. Final Thoughts and Where to Go Next

Understanding Axle Tube Wall Thickness in Simple Terms

Think of axle tube wall thickness like the shell of a bone. It wraps the axle shaft inside, protecting it from bending, twisting, or snapping under load.

Measured in inches or millimeters, it’s the distance between the inner and outer surface of the axle housing. A tube with a 3.5” outer diameter and 0.375” wall thickness has a much thicker, stronger shell than one with the same outer diameter and 0.25” thickness.

This might sound like splitting hairs, but in heavy-duty builds, that extra 1/8” can be the fine line between a controlled descent and a catastrophic tube bend under compression.

Why Axle Tube Wall Thickness Affects Strength and Longevity

Wall thickness defines bending resistance—one of the most critical properties in any axle housing. It’s not just about strength; it’s about stiffness under moment loading—the kind of stress created when one tire compresses upward while the other stays down.

  • Thicker walls increase section modulus, meaning more resistance to bending.
  • They reduce the chance of permanent tube deflection, especially in long housings like full-float Dana 60s or 14 bolts.
  • Thicker tubes resist denting and gouging from rock strikes or road debris.

Put simply: More wall, less worry.

But this doesn’t mean you always want the thickest available. That’d be like wearing a medieval suit of armor to jog a 5K. Overkill can be real—especially when unsprung weight starts to mess with your ride quality and articulation.

The Impact on Flex, Fatigue, and Real-World Rigidity

Now here’s the gray area. You’d think more wall thickness always equals more durability, but not all stress is destructive. Axle housings need to flex just a little to dissipate energy without cracking.

If the tube is too stiff, it may push that energy somewhere worse—like the axle ends, brackets, or even the center section welds. A slightly thinner wall can actually distribute impact stress more evenly, allowing the structure to breathe and bounce back.

This is particularly true for:

  • Independent front axle conversions where housing length is short.
  • Suspension systems with long travel, where the housing sees dynamic loads.
  • Aluminum center housings mated to steel tubes—where weld stress mismatches need balancing.

So again—balance matters more than brute strength. Ask yourself: What kind of forces am I introducing, and where do I want them to go?

Thin-Wall vs Thick-Wall: Applications and Trade-Offs

Let’s break it down by build style and application.

When Thin-Wall Axle Tubes Make Sense

  • Daily drivers with moderate loads.
  • Weight-conscious rigs for overland travel.
  • Mild trail rigs that see occasional articulation but not high shock loads.

These benefit from:

  • Lower unsprung weight (better ride control).
  • Easier weld penetration (less preheat needed).
  • Less drivetrain inertia in fast-spinning axle shafts.

When Thick-Wall Axle Tubes Are Worth the Investment

  • Rock crawlers with high chance of bottoming out.
  • Towing rigs with axle loads over 6,000 lbs.
  • Competition builds or high-torque diesel swaps.

Here, the benefits outweigh the added weight:

  • Massive resistance to twisting under torque.
  • Minimal risk of housing bend during suspension droop.
  • Increased torsional rigidity = better stability during acceleration.

One of the most crucial takeaways here? Application first, specs second. Don’t chase numbers without thinking about your rig’s terrain, speed, and payload.

How Axle Tube Wall Thickness Influences Welding and Sleeving

Welding axle tubes isn’t just about bead control. Thicker tubes behave very differently under heat.

  • Thin tubes (0.25” or less) heat up fast, making it easier to burn through during bracket or truss installation.
  • Thick tubes (0.375”+) require more preheating—often up to 400°F—to prevent weld cracking or cold laps.

And then there’s sleeving. Ever heard of someone stuffing an inner sleeve to reinforce a bent tube? If the original wall was too thin, you may find the outer wall buckled internally or stretched unevenly.

Thicker tubes reduce the need for sleeving and resist distortion during welding, especially when installing trusses or link mounts.

Does Wall Thickness Affect Suspension and Steering Feel?

This is one of those hidden consequences people overlook. When you increase axle mass, you directly affect how the suspension and steering respond to terrain.

  • Heavier axle housings reduce rebound speed.
  • They introduce more unsprung mass, making it harder for shocks to control wheel motion.
  • Thick-walled axles resist housing twist under steering loads, improving precision—but they may feel “dull” on tight switchbacks.

So yes, thicker axle tubes influence how the vehicle feels—especially at the edge of traction or during sudden input.

Common Misconceptions and Mistakes When Choosing Axle Tubes

Let’s clear up some bad shop talk:

  1. “Thicker is always better.”
    Not true. Match wall thickness to your use case—not someone else’s overbuild.

  2. “If it’s not 0.375", it’s junk.”
    Again, context matters. Plenty of rigs run 0.25” tube for years with zero problems.

  3. “You can’t weld reliably to thin-wall tube.”
    You can—you just need proper technique and heat control.

  4. “Sleeves fix everything.”
    Sleeves can reinforce—but they can’t unbend a tube that’s already warped.

  5. “Wall thickness doesn’t affect handling.”
    It does, especially in off-road applications with active suspension dynamics.

Summary: Choosing the Right Wall Thickness for Your Build

If you're building from scratch or replacing a bent housing, pause and ask yourself:

  • What's my axle load range?
  • Will I hit sharp rocks or glide over dunes?
  • Am I towing, racing, or crawling?

Once you answer these, you’ll be able to choose an axle tube wall thickness that protects your gears, preserves your handling, and withstands what you throw at it—without overbuilding.

The answer, then, isn’t a one-size-fits-all. It’s a thoughtful match of thickness to terrain, use case, and budget.

Frequently Asked Questions

Does axle tube wall thickness affect off-road articulation?
Yes. Heavier axle tubes increase unsprung weight, which can reduce suspension responsiveness and articulation smoothness.

Can I weld brackets to thin-wall axle tubes safely?
Absolutely. With proper heat control, MIG or TIG welding on 0.25" wall tubes is safe and durable.

Is a 0.375" wall axle tube overkill for a daily driver?
Usually, yes. Unless you’re running huge tires or frequent high loads, that’s more strength than needed.

Should I sleeve my axle tubes instead of upgrading the wall thickness?
Sleeving adds support, but it's not a perfect substitute for naturally thick tube construction. Sleeves can shift or trap debris if not sealed properly.

Can thicker axle tubes reduce drivetrain damage?
In high-shock environments, yes. They absorb impacts and protect gears and bearings from misalignment caused by housing flex.

Final Thoughts: Does Axle Tube Wall Thickness Really Matter?

Yes—it absolutely does. Axle tube wall thickness isn’t just a stat on a build sheet. It shapes how your rig performs, absorbs stress, and handles abuse. Get it wrong, and you risk a bent housing or sluggish suspension. Get it right, and you create a system that feels dialed, confident, and durable.

When planning your axle upgrade or repair, treat wall thickness with the same respect you give gear ratios or steering geometry. Because in the end, your axle housing is the spine of your drivetrain—and you don’t want that spine to sag.
